Multi-Axis Vibration Test Systems

Multi-degree-of-freedom (MDoF) or multi-axis testing is a methodology where excitations are applied to a test article along more than one axis. In traditional vibration testing, test articles are traditionally actuated in a single axis of motion at a time. This type of testing requires minimal test equipment and usually only a single actuator coupled to a vibration table. One of the challenges of this technique is the changeover time between test setups, especially if one must rotate the shaker and remove the test object.

Recreating Real-World Dynamics

While some product scenarios in the real-world might see vibratory contributions primarily in a single axis, all will face 6-degrees-of-freedom excitations. There is expanding knowledge that indicates MDoF test methods are a more realistic approach than traditional vibration testing and introduce new failure modes that are not currently being designed against.

Our Multi-Axis Vibration Test Systems

Team Corporation is a pioneer in the field of multi-axis vibration testing, advancing our solutions with decades of experience.

We offer the following multi-axis vibration systems:

  • The Cube™ 6 DoF Vibration Test System: These shaker tables offer six degrees of control to accurately reproduce practically any vibration environment with high frequencies and precise control.
  • Tensor 18kN™ High Frequency 6 DoF Vibration Test System: This system has four shakers in each axis, producing 3,600 lbf. per axis.
  • Tensor 900™ High Frequency 6 DoF Vibration Test System: Our fully contained vibration test system offers all six degrees of freedom through a 5-kilohertz bandwidth.

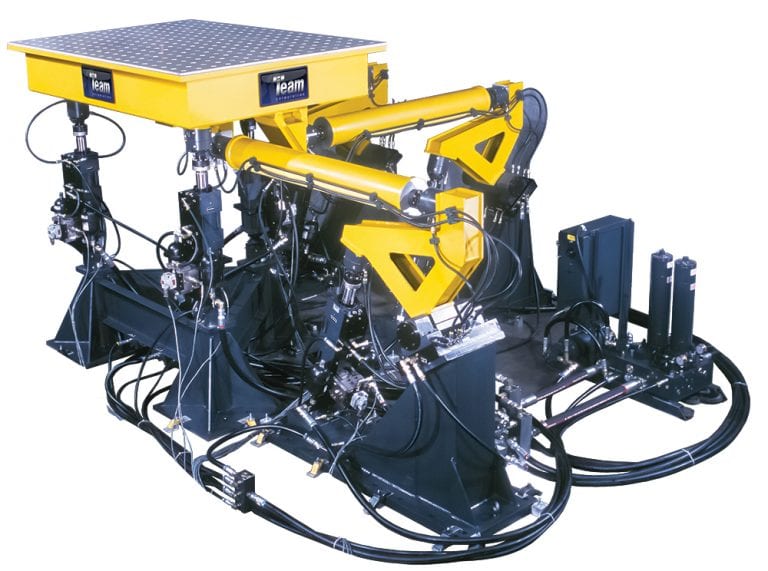

  • MANTIS™ 6 DoF Vibration Test System: MANTIS™ is ideally suited for applications requiring large displacement, high-frequency, and extended payload capacity.

Product Inquiry

Contact the multi-axis test system experts at Team Corporation. As leaders in vibration test systems design and manufacturing, we can work with you to arrive at the right solution for your application.

Request a quote today!
