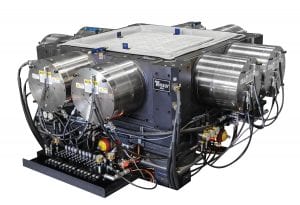

Tensor 18kN™ High Frequency 6-DoF Vibration Test System

The Tensor 18kN™ 6 DoF vibration test system expands on the design of the smaller and more compact Tensor 900. The system is designed to be over-determined – utilizing proprietary oil-cooled ED shakers for excitation out to 2,000 Hz.

However, the larger design incorporates twelve individual 900 lbf RMS shakers to drive a 30-inch square table. With four shakers in each axis, this system produces 3,600 lbf RMS per axis, and has a bare table moving mass of nominally 430 lbm.

The Tensor 18kN™ represents cutting edge technology in multi-axis testing and incorporates an integrated, air-isolated and highly damped reaction mass capable of 12g peak sine (bare table) and 9g RMS (bare table) random acceleration.

Access Team Corporation's Product Literature

Access Team Corporation's Technical Library

Visit our video library for more.



  • 5-2000Hz frequency Band
  • 4800 lb-f (21.4kN Sine) All Axis
  • Oil Cooled Custom ED Shakers
  • Hydrostatic Bearings Throughout
  • 30 inch (750mm) Mounting Table
  • Power Amplifier Set (120 kVA total)
  • Highly Damped Reaction Mass
  • Hydraulic Power Supply
  • Sensitive Electronics Testing
  • Avionics Validation
  • Communication Equipment Testing
  • PCB Testing
